LG10-11
型號 :
LG10-11
| Specifications | |
| Range: |

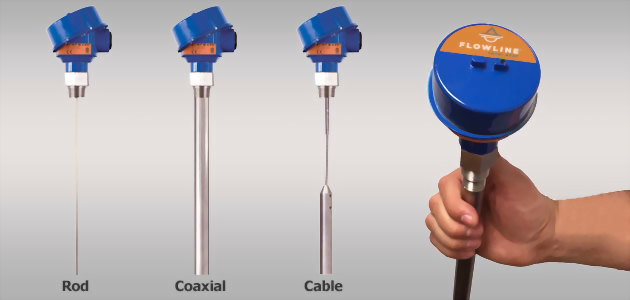

Rod & coaxial: 9.8’ (3m) Cable: 18’ (5.5m) |
| Accuracy: | ± 3mm |
| Dead band: |
Top: 4” (10cm) Bottom: 2” (5cm) |
| Repeatability: | < 2mm |
| Resolution: | < 2mm |
| Configuration: |
WebCal® PC Windows® USB® 2.0 |
| Supply voltage: | 10-30 VDC |
| Max. consumption: | < 50mA @ 24 VDC |
| Signal output: | 4-20mA, 3-wire |
| Signal fail-safe: |
4mA, 20mA, 21mA, 22mA or hold last |
| Dielectric: | > 1.8 |
| Process temp.: |
F: -40º to 302º C: -40º to 150º |
| Ambient temp.: |
F: -40º to 185º C: -40º to 85º |
| Pressure: |
-14.5 to 250 PSI (-1 to 17 bar) |
| Enclosure rating: | NEMA 4 |
| Encl. material: | Aluminum |
| Feed through mat.: | 316L SS & PEEK |
| Conduit entrance: | (1) 1/2” NPT connector |
| Probe material: |
Rod & coaxial: 316L SS Cable: 316 SS |
| Process mount: | 3/4” NPT (3/4” G) |
| Classification: | General purpose |
| Certification: | cCSAus, NRTL |
| Compliance: | CE, CRN, RoHS |
