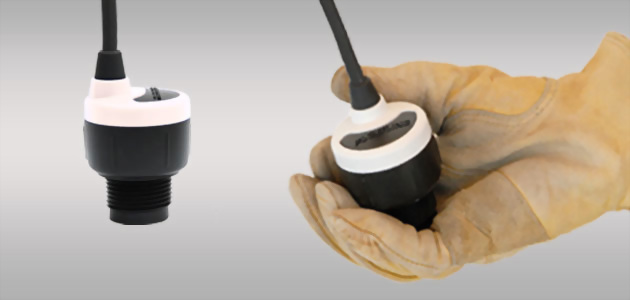

DL10
型號 :
DL10
| Specifications | |
| Range: | 49.2” (1.25m) |
| Accuracy: | 0.125” (3mm) |
| Resolution: | 0.019” (0.5mm) |
| Dead band: | 2” (5cm) |
| Beam width: | 2” (5cm) |
| Configuration: |
WebCal® PC Windows® USB 2.0 |
| Memory: | Non-volatile |
| Supply voltage: | 24 VDC (loop) |
| Consumption: | 0.5W |
| Loop resist.: | 400Ω max @ 24 VDC |
| Signal output: | 4-20 mA, two-wire |
| Signal invert: | 4-20 mA or 20-4 mA |
| Loop fail-safe: |
4 mA, 20 mA, 21 mA, 22 mA or hold last |
| Process temp.: |
F: 20° to 140° C: -7° to 60° |
| Temp. comp.: | Automatic |
| Ambient temp.: |
F: -31° to 140° C: -35° to 60° |
| Pressure: | MWP = 30 PSI (2 bar) |
| Enclosure rating: |
Type 6P, encapsulated, corrosion resistant & submersible |
| Encl. material: | Polycarbonate |
| Strain relief mat.: | Santoprene |
| Trans. material: | PVDF |
| Cable jacket mat: | Polyurethane |
| Cable type: | 4-conductor, shielded |
| Cable length: | 48” (1.2m) |
| Process mount: | 1” NPT (1” G) |
| Mount gasket: | Viton® |
| Classification: | General purpose |
| Compliance: | CE, RoHS |
| Approvals: | cFMus |
