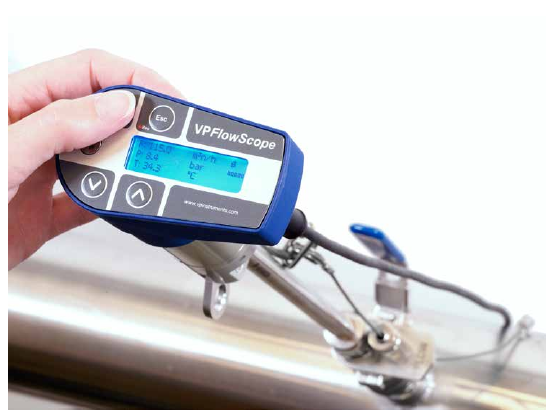

The VP Flow Scope Probe can be used in various pipe diameters, which makes it the perfect solution for measuring of both the supply side and demand side of compressed air systems. The flow meter shows you where, when and how much air is used in order to allocate cost and subsequently to save money and energy.

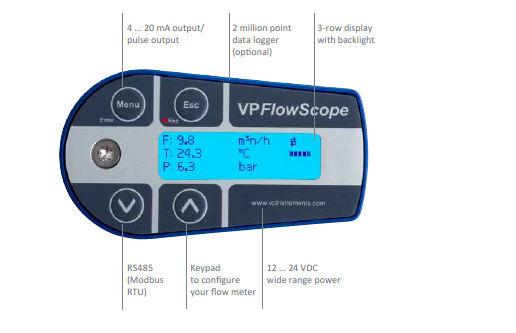

The bright blue LCD display provides real-time information and with the built-in data logger, you can record for certain periods of time. Combine this with our VPStudio software on your PC and you can use this information to process data, print reports and analyze where and how exactly you can save.

•   4  -in-1 sensor: flow, pressure, temperature and total flow
•   Bi-directional flow measurement (optional)>  P  atented Thermabridge™ technology for dry, clean gas  measurements
•   Standard RS485, 4..20mA and pulse output>  3  -line LCD display (optional) with real-time information and configuration keys.

•   Bu  ilt-in data logger with 2 million points  (optional)

• >  Submetering of compressed air
• >  Ring networks (bi-directional)
• >  I ndustrial gas monitoring (air, nitrogen,

• >  Cost allocation
• >  Leak detection
• >  1  6 bar (250 psi) and 35 bar (500 psi)
