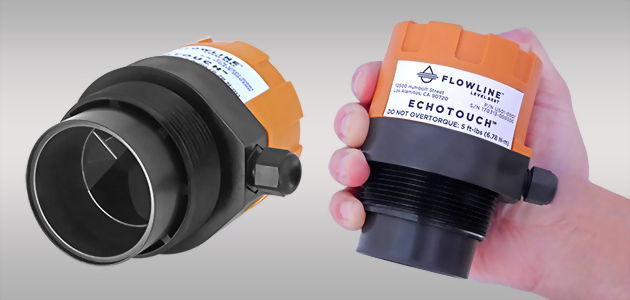

US01&03
型號 :
US01&03
| Specifications | |
| Range: |
US01: 1.5” to 4.9’ (3.8cm to 1.5m) US03: 4” to 9.8’ (10.1cm to 3m) |
| Accuracy: |
US01: 0.125” (3mm) US03: ± 0.2% of range |
| Resolution: |
US01: 0.019” (0.5mm) US03: 0.039” (1mm) |
| Dead band: |
US01: 1.5” (3.8cm) US03: 4” (10.1cm) |
| Beam width: | 2” (5cm) |
| Configuration: | WebCal® PC Windows® USB® 2.0 |
| Memory: | Non-volatile |
| Supply voltage: | 14-28 VDC |
| Loop resistance: | 500 ohms @ 24 VDC |
| Signal output: | 4-20mA, two-wire |
| Signal invert: | 4-20mA or 20-4mA |
| Signal fail-safe: | 4mA, 20mA, 21mA, 22mA, hold last |
| Process temp.: |
F: -40º to 176º C: -40º to 80º |
| Temp. comp.: | Automatic |
| Ambient temp.: |
F: -31º to 140º C: -35º to 60º |
| Pressure: | 30 psi (2 bar) |
| Enclosure rating: | Type 6P (IP68) |
| Encl. material: | Polypropylene |
| Transducer type: | Reflective |
| Transducer mat.: | Polyvinylidene fluoride |
| Cable jacket mat.: | Polyvinyl chloride |
| Cable type: | 4-conductor, shielded |
| Cable length: | 48” (1.2m) |
| Process mount: |
-0001: 2” NPT -0011: 2” G |
| Mount gasket: |
-0001: N/a -0011: Viton® |
| Classification: | Intrinsically safe |
| Approvals: (for USA): |
Class I, Div 1, Groups A, B, C & D T4; Class II, Div 1 Groups E, F & G T4; Class III T135C; Class I, Zone 0, IIC AEx ia T4 Ga; Class II, Zone 20, IIIC AEx ia, T135C, Da |
| (for Canada): |
Class I, Div 1, Groups A, B, C & D T4; Class II, Div 1 Groups E, F & G T4; Class III T135ºC |
| (for IECEx): |
Ex ia IIC T4 Ga; Ex ia IIIC, T135C Da; Tamb: -40 to 80C |
| Entity parameters: | See control drawing #610125 |
| Compliance: | CE, RoHS |
